Zone Offroad 20-26 GM 2500/3500HD 5" Suspension Lift Kit - Fox 2.0 Adventure Series Shocks

SKU: ZONC43F

Will not fit AT4X and ZR2 models

Front Lift Height: 5"
Rear Lift Height: 4.5"

2 Piece Driveshafts Require P/N ZONC5612

Pricing: $2,071.50

Description
Details
Shipping
Reviews

Description

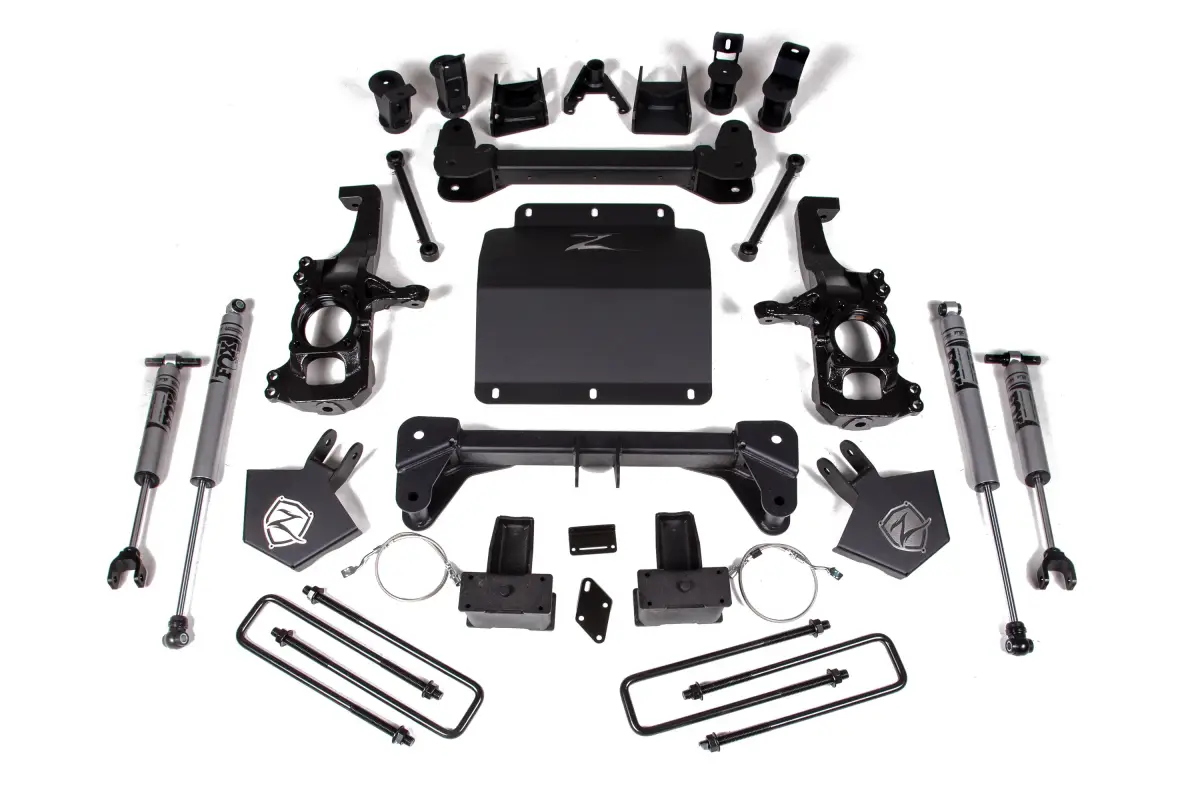

Take your GM 2500/3500HD to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to differential relocation and and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Features & Benefits

Maintains ride quality and handling characteristics
Improves ground clearance while correcting suspension-steering-driveline geometry
High strength 1/4" thick steel crossmembers and differential skid plates
CNC machined ductile iron steering knuckles to maintain ESC System compatibility
Zone Offroad branded front skidplate and torsion bar relocation brackets
Allows clearance for up to 37" tires to be installed

Recommended Tires & Wheels

(Trimming may be required)

37 x 12.5 with 20 x 9 and 5.5 in. Backspace
35 x 12.5 with 20 x 10 and 5.5 in. Backspace
35 x 12.5 with 17 x 9 and 4.625 in. Backspace

Shock Option

FOX 2.0 Adventure Series

2-inch diameter steel body
Internal floating piston (IFP) monotube design
Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting silver coated finish

Important Notes

Compatible with gas and diesel models as well as standard and AT4 equipped models.
Will not fit AT4X and ZR2 models
Frame bracket modifications required for installation.
Stock 17-18" wheels cannot be reinstalled, stock 20" wheels can be reinstalled.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.
