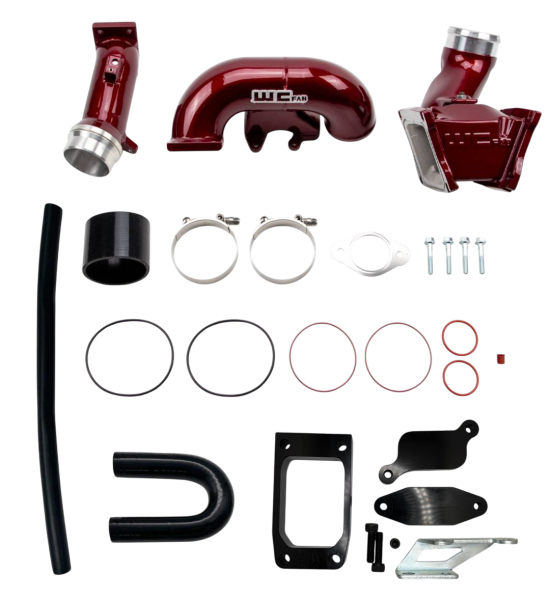

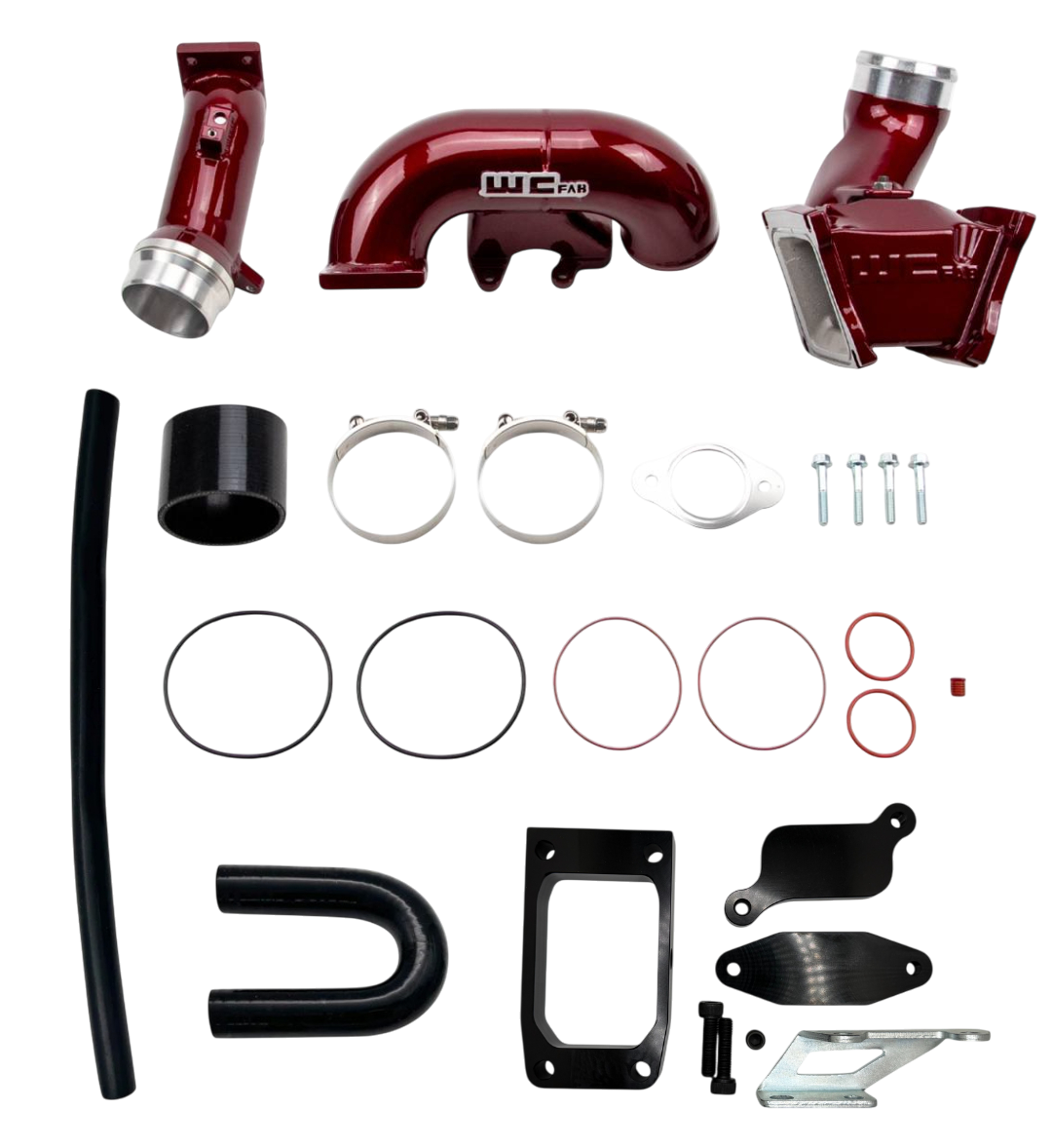

WCFAB x UnderDog Diesel 2006-2010 LBZ/LMM Duramax High Flow 3" Y-Bridge Kit - WCF100163-UDD

SKU: WCF100163-UDD

WCFAB Products

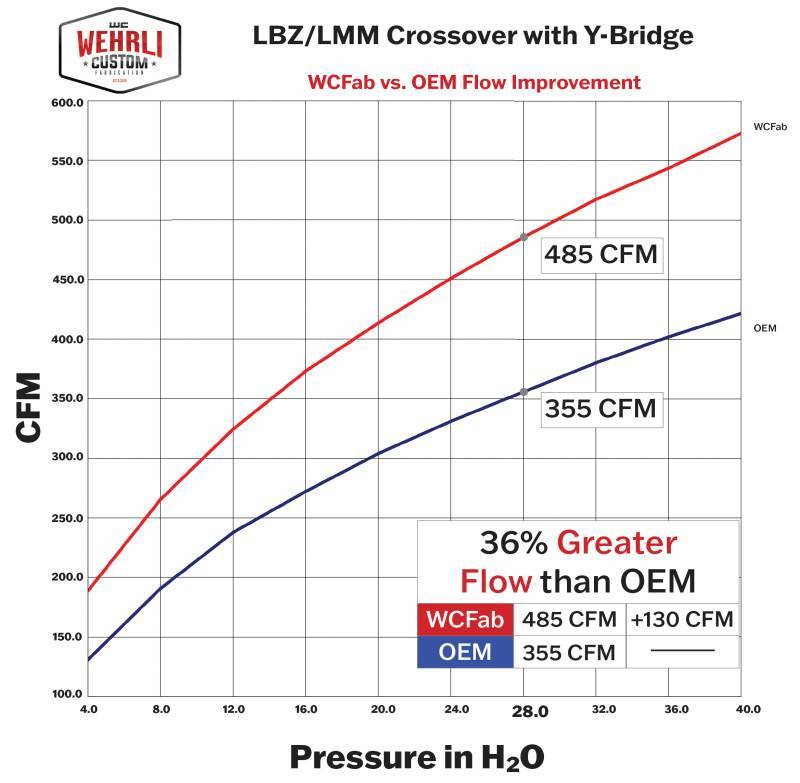

-36% Improvement in Air Flow Over Stock
-Eliminates restrictions and known failure points in OEM design
-WCFab's Signature 3" Two Piece Y-Bridge
-3" Upper Intercooler Crossover Pipe
-3" Lower Intercooler Pipe
-High Quality Silicone Boot
-Stainless Steel T-Bolt Clamps
-Map Sensor Seal
-High Temp O-Ring Seals for Grid Heater and EGR
-Y-Bridge O-Ring Flange Seals
-Custom Powder Coat Finish

UnderDog Products for 'increased flow'
-Intake Air Heater Plate
-Bridge Plates
-Intercooler Crossover Pipe Support
-Hoses

Availability: WCFab Red, WCFab Grey and Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.

Shipping: This product cannot ship to California.

Was: $1,134.01

Sale: $1,020.61

Save: 10%

Save: $113.40

Customize Your Item

Model Year

- Model Year -

* required

Select your Tag (WCFab Emblem) finish from the options below. Applies to all logos on parts within this item.

Tag (Logo) Finish (PCUCTAG)

- Tag (Logo) Finish (PCUCTAG) -

* required

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

Powder Coating

- Powder Coating -

* required

Qty:

Free Shipping - Ground

Description
Details
Shipping
Reviews

Description

This LBZ/LMM 3" Y-Bridge Kit is an upgraded high flow intake kit for the 2006-2010 LBZ/LMM 6.6L Duramax which replaces the OEM upper intake manifold supplying air to the engine intake runners. The OEM Y-bridge for these trucks is a poorly designed, slip-fit style two piece bridge with very little support and is prone to blowing apart under boost on hard working and high performance trucks creating poor drivability and decreased power. This kit is a much improved, high flow, bolt together style two piece 3" bridge which provides a secure sealing surface where the air inlet horn connects to the bridge. 3" high flow upper and lower intercooler pipes feature smooth flowing mandrel bends, CNC machined billet flanges and perfectly compliment the y-bridge to offer a full 3" tract from intercooler pipe slip connection to the engine. Compatible with OEM lower passenger side intercooler pipe as well as our upgraded 3.5" High Flow Passenger Side Intercooler Pipe Kit WCF100367.

Finished in your choice of custom powder colors. This product is compatible with stock trucks requiring no additional modifications, upgrades, or tuning for installation.

*Tuning Required to fully install all products in this kit.

Highly recommended products to install with this kit

Dogbone LB7 Up Pipe (DogBone-LB7-P-UPPIPE)

PPE Downpipe (117000500)
