HSP Diesel 2007.5-2010 LMM Duramax Deluxe Max Air Flow Bundle - 484-HSP

HSP 2007.5-2010 Chevrolet / GMC Deluxe Max Air Flow Bundle

Part Number: 484-HSP

The 484-HSP is best known as the Deluxe Max Air Flow Bundle for the 2007.5-2010 LMM Duramax-equipped Chevrolet and GMC trucks. This bundle is ideal for owners who want to fully upgrade their airflow and cooling systems for peak factory or drop-in turbo performance.

What Is the Deluxe Max Air Flow Bundle for the LMM?

This bundle provides every key HSP Diesel component for the LMM platform in one complete kit. Whether you're retaining the factory turbo and injectors or planning mild upgrades, this package helps extract maximum performance from your stock system.

Cold Air Intake

Featuring a 4.5" mandrel-bent intake tube, paired with a high-flow filter and open-style heat shield, this setup blocks hot engine air and delivers measurable performance gains—up to 20 HP and 58 lb-ft of torque.

Hot Side Intercooler Tube

The OEM design often leaks at the lower boot. HSPs version removes that boot, uses a 3" mandrel-bent tube, and minimizes turbulence while increasing airflow up to 40%.

Max Flow Bridge and Cold Side Tube

The CNC-machined, O-ring sealed two-piece Max Flow Bridge installs easily and improves flow integrity under boost. Paired with a 3" mandrel-bent cold side tube, this upgrade increases overall system reliability and air delivery.

Billet Thermostat Housing Kit

Our billet aluminum housing reroutes coolant to eliminate the hose that crosses over the driver-side valve cover. CNC-machined for durability and aesthetics, it frees up workspace and improves coolant flow.

2" Replacement Up-Pipes

Built from 304 stainless steel with sleeved bellows, these high-flow up-pipes improve turbo spool and reduce EGTs by eliminating restrictive factory bottlenecks.

VGT Intake Mouthpiece

Hand-assembled and O-ring sealed, this mouthpiece handles the added airflow while eliminating the resonator box and allowing optional PCV rerouting (PCV kit sold separately, see part 003-1-HSP).

Factory Replacement Coolant Tank

Factory tanks tend to crack and yellow with age. HSPs all-aluminum version is CNC cut, hand-welded, and includes OEM sensor provisions for a direct-fit replacement with improved longevity and style.

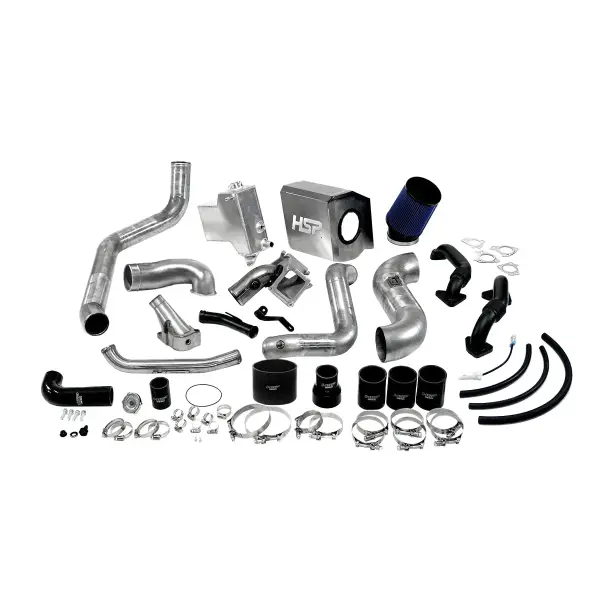

Whats Included:

• 1x Hotside Tube (HSP-IN-207)
• 1x Bridge Section (HSP-IN-220)
• 1x Bridge Neck (HSP-IN-743-2)
• 1x Coldside Behind Alt (HSP-IN-202)
• 1x 4.5" Cold Air Intake Tube (HSP-IN-150-2)
• 1x 4.5" Hole Heatshield Box (HSP-IN-748)
• 1x Heatshield Box Lid (HSP-IN-746)
• 1x Fabricated Turbo Inlet (HSP-IN-216-1)
• 1x Coolant Tank - Factory Replacement (HSP-IN-708)
• 1x Billet Thermostat Housing Upper (HSP-IN-716)
• 1x Billet Thermostat Housing Lower (HSP-IN-715)
• 1x Radiator Hose Tube w/ Logo (HSP-IN-229)
• 1x Upper Fan Shroud Bracket (HSP-IN-714)
• 1x Oil Fill Neck Tube (HSP-IN-717)
• 1x 2" Stock Replacement Up Pipe - Driver- Ceramic Coated (HSP-IN-281-C)
• 1x 2" Stock Replacement Up Pipe - Passenger - Ceramic Coated (HSP-IN-280-C)
• 1x 4.5" Filter (RFB-413-RFAB)
• 1x Bridge Neck O-Ring (RFB-670-RFAB)
• 1x 1/8'' NPT Brass Plug (RFB-811-RFAB)
• 2x Bridge Neck Stud (RFB-902-RFAB)
• 2x Bridge Neck 12-Point Nut (RFB-903-RFAB)
• 4x 1/8" Aluminum Rivet (RFB-098-RFAB)
• 3x 10-32 x 3/8" Button Head Screws (RFB-099-RFAB)
• 16x Trim Lock (RFB-411-RFAB)
• 1x Heatshield Box Lid Backer Plate (RFB-746-BP-RFAB)
• 2x M4x.7x10mm Bolt (RFB-901-RFAB)
• 1x Radiator Cap (RFB-806-RFAB)
• 1x Thermostat Housing O-Ring (RFB-719-RFAB)
• 4x M8x1.25-25mm Socket Cap Bolt (RFB-909-RFAB)
• 4x M6x1.0-18mm Socket Cap Bolt (RFB-913-RFAB)
• 1x 4" T-Bolt Clamp (RFB-424-RFAB)
• 1x 4.5" T-Bolt Clamp (RFB-435-RFAB)
• 1x 4.5" - 4" Straight Boot (RFB-495-RFAB)
• 1x 2.25" T-Bolt Clamp (RFB-420-RFAB)
• 3x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 2.25" to 3" Reducer Boot (RFB-441-RFAB)
• 1x Up-pipe Gasket (Turbo Side) (RFB-821-RFAB)
• 1x Up-Pipe Gasket (Manifold Side) (RFB-822-RFAB)
• 24x 5/8" Heater Hose (RFB-401-RFAB)
• 2x 5/8" Worm Gear Clamp (RFB-403-RFAB)
• 4x 3" T-Bolt Clamp (RFB-422-RFAB)
• 2x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x Turbo Inlet O-Ring (RFB-628-RFAB)
• 18x 3/8" Heater Hose (RFB-395-RFAB)
• 2x 1/2" Worm Gear Clamp (RFB-405-RFAB)
• 4x 1 3/4" Worm Gear Clamp (RFB-408-RFAB)
• 1x 1.75" 90° Boot - Rubber (RFB-433-RFAB)
• 1x 1.75"x3" Straight Boot - Rubber (RFB-437-RFAB)
• 1x Metric Bonded Seal 14mm (RFB-455-RFAB)
• 1x M14x1.5 to 3/8" Hose Barb (RFB-692-RFAB)
• 1x M14x1.5 Metric Port Plug (RFB-969-RFAB)
• 14x 1/2" Heater Hose (RFB-400-RFAB)
• 2x 1/2" Worm Gear Clamp (RFB-405-RFAB)
• 1x 1" Worm Gear Clamp (RFB-406-RFAB)
• 1x Low Coolant Sensor (RFB-459-RFAB)

Special Note:

HSP Diesel is currently transitioning to a new boot design. As a result, some kits may ship with boots that do not have logos. This change ensures consistent availability without sacrificing quality.

Vehicle Fitment:

• LMM: 2007.5-2010 (8th digit of VIN = 6)

How to Verify: The 8th character in the VIN indicates engine code. The 10th character is the model year.

Overview:

• Increased performance and throttle response
• Maximizes performance from stock or drop-in setups
• Cold Air Intake and 3" Charge Tubes
• Billet Thermostat Housing and Replacement Coolant Tank
• 5x layer Silicone Boots and High-flow Up-Pipes
• Powder coat options for a clean, customized engine bay
• Fixes common factory failure points
