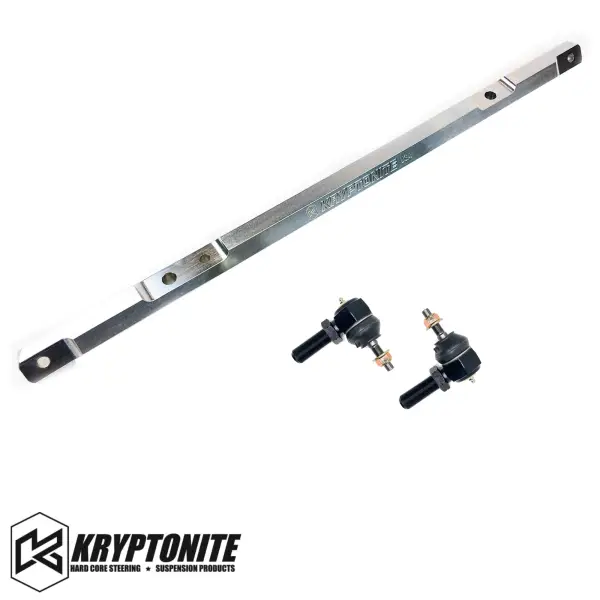

KRYPTONITE SS Series Center Link (Upgrade) GM HD 2001-2010 - 2nd Generation 7/8" Rod Ends

KR10SSU78
Fits; 2001-2010 Chevy/GMC 2500/3500 HD
2nd Generation 7/8" Rod Ends
Pricing: $599.99

Qty:
Free Shipping - Ground

Description

KRYPTONITE SS SERIES CENTER LINK (UPGRADE) 2001-2010

Fits; 2001-2010 Chevy/GMC 2500/3500 HD

Part# KR10SSU34/78

CLICK HERE FOR CENTER LINK INSTALLATION INSTRUCTION DOWNLOAD

Center Links now come Zinc plated to decrease corrosion!

This Kryptonite SS Series Center Link upgrade is for customers that are currently running Kryptonite tie rods with their factory center link. Included with this package is the incredibly strong Kryptonite SS Center Link and 2 new inner tie rods needed to adapt to your current Kryptonite tie rods. The SS series center link is our most popular steering upgrade for truck owners that are driving on paved roads most of the time and do not want to compromise turning radius or tire wear. This system performs extremely well on the drag strip and on the sled pull track also. Can be used with GM or aftermarket Idler/Pitman arms. Will work with PISK support system. The PISK system should be run if you are going to be 4 wheel launching or Sled Pulling.

Important: Do to the nature of our industry we are constantly striving to provide our customers with the latest and the strongest technology available. Over the last several years our Tie Rods have changed Significantly. When purchasing this Center Link upgrade package, please be aware of 2 different tie rod sizing options. Do your tie rod bodies take 3/4" Threads, or 7/8" Threads? Please verify before placing your order with us, and select the appropriate option for your truck.

Note: If installing Kryptonite SS center link on a leveled truck you may need to install longer sway bar end links depending on how high the torsion bars have been adjusted.

Includes:

  • 1 x Kryptonite Series Solid Center Link

  • 2 x Kryptonite Series Inner Tie Rod Ends (For Use With Kryptonite Tie Rods Only)

Strength Details:

Size: 1- 5/8 inch Hexagonal

Material: 1144 Stress Proof Carbon Steel.

Finish: Black Powdercoat


Tensile Strength
115,000 psi (Min.)
Yield Strength
100,000 psi (Min.)

VS

4140-4130 chromoly steel
Tensile Strength
85,000–110,000 psi
Yield Strength
70,000–85,000 psi

(Kryptonite No Fine Print Lifetime warranty)-Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.

Your Kryptonite products must be purchased from an authorized dealer, and must complete warranty registration within 90 days of purchase. Complete Warranty details can be found here.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 26.0 lbs.
  • W41.0000” x H4.0000” x L16.0000”
  • Free Shipping - Ground
