Please Note: THIS IS NOT A LIFT PUMP! This is an air separation/filtration system that utilizes your factory in-tank lift pump.

The DIFSFRD1001 Fits: 2017-2026 Ford F-250, F-350 & F-450 Super Duty 6.7L Power Stroke

Please Note: If you have a S&B or Titan Fuel Tank, you will need to purchase our adapter kit PN. DIFSFRDTANKSPCR.

Please Note: Installation of this kit on a cab and chassis may require modifications. Drop-In Fuel Systems are a plug-and-play filtration upgrade and are not compatible with our Fuel Sump Kit. This plug-and-play filtration system retains the Power Stroke OEM fuel pump.

The FASS Drop-In Series Diesel Fuel System was engineered by FASS to be the most effective filtration solution for the Ford 6.7L Power Stroke. Backed by our limited lifetime warranty, the Drop-In Series Fuel System protects your Ford 6.7L Power Stroke from the damage caused by air, vapor, water, and debris in your diesel fuel.

Without proper fuel filtration, modern diesel injection systems are prone to excessive wear that can cost thousands. By removing over 99% of the water from your fuel along with air, vapor, and debris down to 2 microns absolute, the Drop-In Series WILL TRIPLE the life of your injection system, and does even more for CP4-equipped trucks, where the injection pump has almost no tolerance for contaminated fuel.

Designed as a direct replacement for the factory engine fuel filter, the Drop-In Series bypasses the OEM engine-mounted filter and the rear-mounted filter (if equipped), replacing both with FASS filtration and cutting your ongoing filter maintenance in the process. The kit is supplied with 3/8" fuel line to replace the OEM feed line from the tank to the CP4, and it keeps the factory water-in-fuel sensor fully functional, so your WIF light still warns you before water reaches the injection system. The result is cleaner fuel, better water separation, and a consistent fuel supply while retaining a factory-style installation with no external frame-mounted pump.

Eliminating these contaminants optimizes MPG, restores horsepower and sharpens throttle response while improving the operational balance of your engine through consistent fuel delivery timing. And it installs in as little as an hour, a true plug-and-play system with no cutting, wiring or additional modifications, delivering a real return on investment by cutting maintenance costs and protecting the most expensive components on your truck.

Our industry-leading water removal is reinforced by the design of the Extreme Water Separator (XWS). If the XWS ever reaches capacity, it acts as a dam and shuts down fuel flow, a mechanical shutdown that stops a bad tank of fuel from destroying your injection system.

Reliability, Simplicity, Protection

• Supports Stock & Modified Power Stroke: Plenty of fuel for stock and modified Fords.
• Injector Protection: WILL TRIPLE the life of your fuel injection system.
• FASS Filtration: Optimizes combustion, restores horsepower, and maximizes MPG.
• Limited Lifetime Warranty: Register your FASS system, and you’re covered.

Advanced Filtration Technology

• Water Separation: Extreme Water Separation Technology, 3rd-party proven to eliminate over 99% of free and emulsified water.
• Air/Vapor Removal: Patented process eliminates entrained air/vapor that damages injection systems and reduces power/efficiency.
• 2 Micron Absolute Filtration - Microglass: Removes debris smaller than OEM filters can catch.

Key Benefits

• Improves Reliability: WILL TRIPLE the injection system life.
• Maximized Horsepower: Improved fuel atomization, restored injection timing
• Optimized MPG: More efficient and complete combustion
• Peace of Mind: The Extreme Water Separator acts as a fail-safe against a bad tank of fuel
• Cold Weather Confidence: Reliable starts and operation in harsh climates, especially when paired with the FASS Drop-In Fuel Heater Kit
• Cleaner Operation: Reduced DPF regenerations and soot output through improved combustion
• Improves fuel lubricity at least 10% by removing entrained air/vapor
• Lower Cost of Ownership: Eliminates two OEM filters and reduces injection-system repairs

Key Features

• The only Drop-In 6.7L Power Stroke filtration system that retains full functionality of the OEM water-in-fuel light via WIF sensor.
• The only Drop-In filtration system in the light-duty market with air separation!
• Increases fuel lubricity by at least 10%.
• WILL TRIPLE the life of fuel injection components.
• 100% drop-in, no additional modifications needed.
• Retains the factory in-tank lift pump.
• Performance Radius Cuts (PRC): Smoother internal fuel flow.
• 2 micron absolute filtration rating: Captures finer debris than OEM filters.
• Removes over 99% of free and emulsified water (3rd-party verified).
• Patented FASS air/vapor removal process.
• Bypasses OEM engine-mounted filter and rear-mounted filter (if equipped) reducing maintenance cost.
• Supplied with 3/8" fuel line to replace OEM feed line from tank to CP4.
• Electric heater options available for cold weather reliability.
• Limited Lifetime Warranty (with registration).

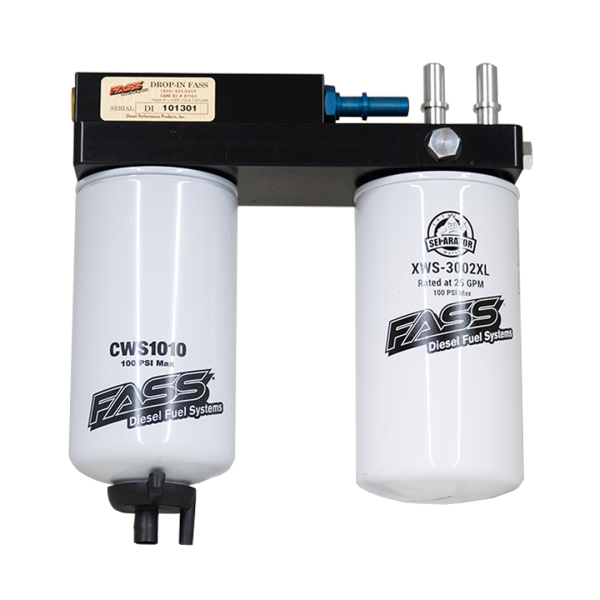

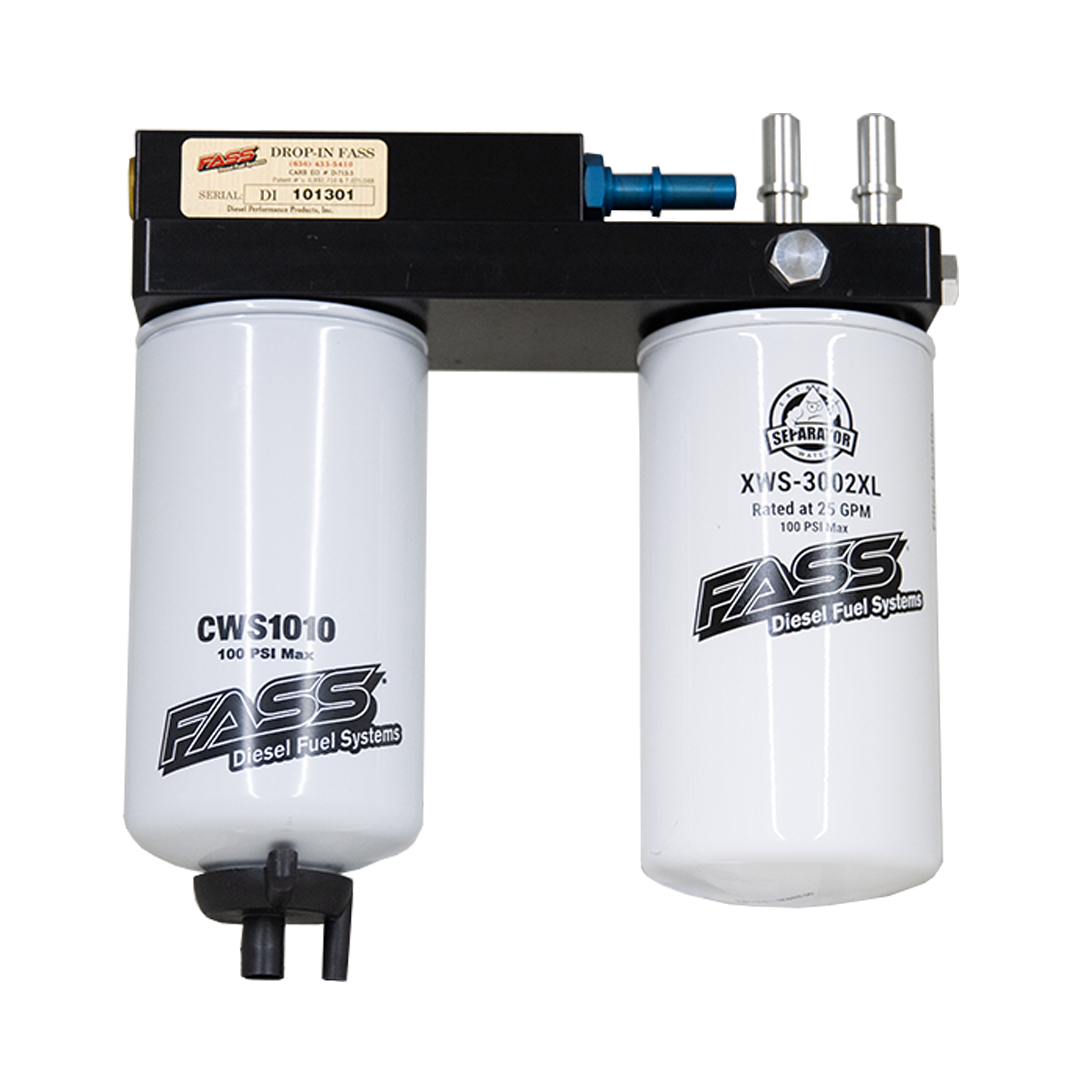

What’s Included In The DIFSFRD1001 FASS Drop-In Series:

• (1) FASS Drop-In Series Air Separation/Filtration System
• (1) FASS XWS3002XL Extreme Water Separator
• (1) FASS CWS1010 Coalescing Water Separator
• (1) 3/8" Fuel Line, Tank to CP4
• (1) Installation Kit Including Fittings, Bracketry, and Hardware

Recommended Add-Ons

• FASS Drop-In Series Electric Heater Probe Kit: Cold-weather gelling protection.
• FASS DIFSFRDTANKSPCR Drop-In Tank Spacer Kit: Required for S&B or Titan aftermarket fuel tanks.
• FASS FP1000 Drop-In Filter Replacement Pack: One XWS3002XL Extreme Water Separator and one CWS1010 Coalescing Water Separator, the full filter change for this kit.
• FASS XWS3002XL Extreme Water Separator: Replacement element.
• FASS CWS1010 Coalescing Water Separator: Replacement element.

Why Choose FASS?

See more here at Why FASS or review our craftsmanship standards at FASS Craftsmanship

At FASS, we don’t rush products to market, we “Strive for perfection & settle for excellence”. That’s why our systems have a failure rate of less than .5%, and why diesel owners across the country trust us to protect their investments. Whether you’re daily driving your Power Stroke-powered Ford or building horsepower, the FASS Drop-In Series Fuel System gives you peace of mind and performance you can feel. Register your system with FASS to activate the limited lifetime warranty.
