Wehrli Custom Fabrication 2001-2004 LB7 Duramax S400 Single Turbo Install Kit - WCF100489

(0) Reviews: Write first review

SKU: WCF100489

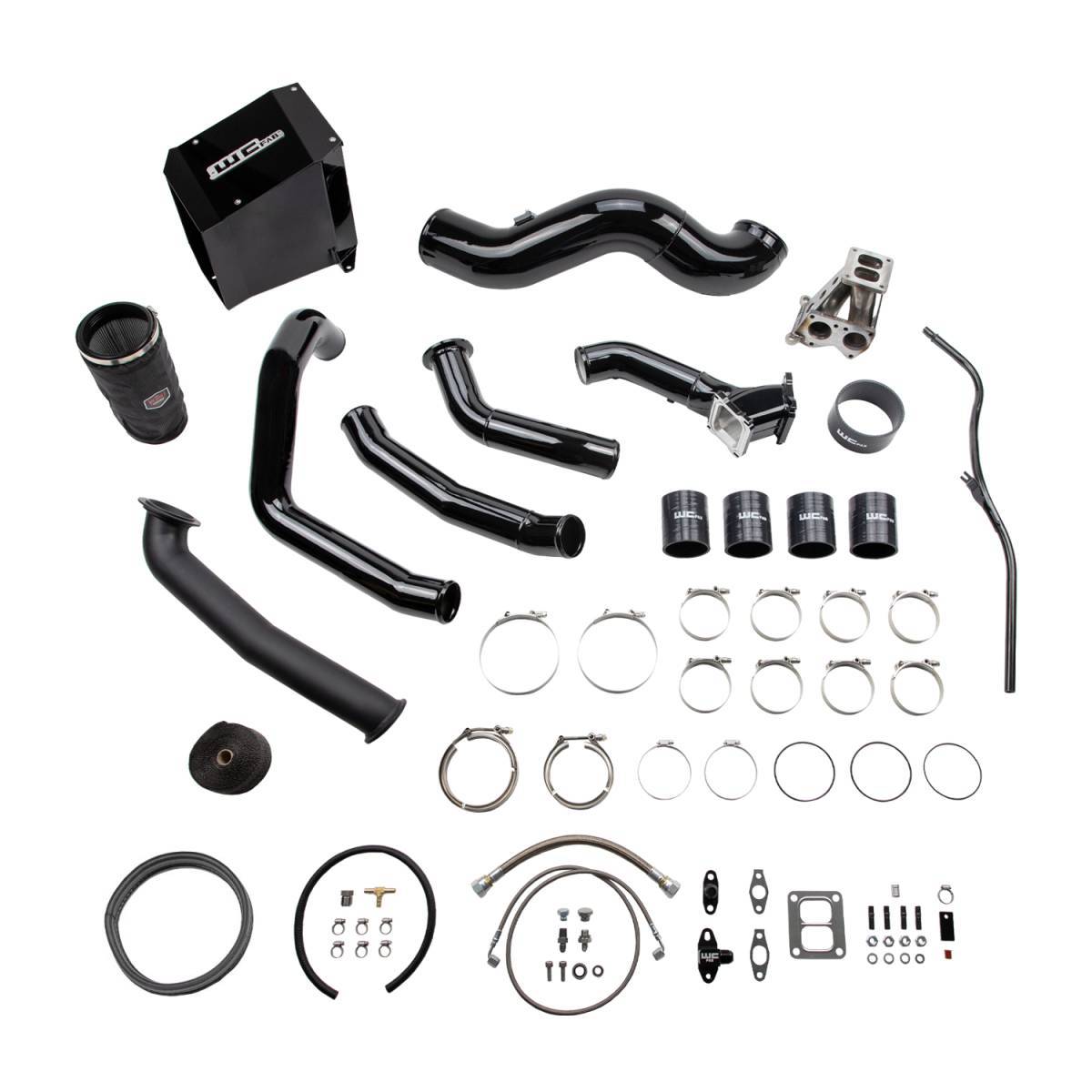

5" Intake
Dry Air Filter
Outerwear's Pre-Filter Cover
T4 Pedestal & Spacer with Hardware
Stainless Steel Oil Feed and Drain Lines with Fittings
3" Fabricated High Flow Y-Bridge
3" Hot Side Intercooler Pipe
3" Cold Side Intercooler Pipe
14g Mandrel Bent Aluminum Construction
3" Down Pipe with High Temp Coating (Mates to exhaust system flange)
Driver Side Trans Dipstick Tube
Silicone Boots
T-Bolt Clamps
V-Band Clamps
Heat wrap
Powder Coating

Availability: Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.

Shipping: This product cannot ship to California.

Was: $2,789.00

Sale: $2,705.33

Save: 3%

Save: $83.67

Customize Your Item

Model Year

- Model Year -

* required

What intercooler do you have?

- What intercooler do you have? -

* required

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

Powder Coating

- Powder Coating -

* required

Up Pipes & Manifolds

- Up Pipes & Manifolds -

* required

T4 Turbo Heat Blanket

- T4 Turbo Heat Blanket -

* required

S400 Turbo Charger T4

- S400 Turbo Charger T4 -

* required

Fastener Type

- Fastener Type -

* required

T4 Exhaust Housing Finish

- T4 Exhaust Housing Finish -

* required

Select your Tag (WCFab Emblem) finish from the options below. Applies to all logos on parts within this item.

Tag (Logo) Finish (PCUCTAG)

- Tag (Logo) Finish (PCUCTAG) -

* required

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

Powder Coat S400 Turbo Cover

- Powder Coat S400 Turbo Cover -

* required

LB7 Coolant Pipe

- LB7 Coolant Pipe -

* required

Qty:

Free Shipping - Ground

Description
Details
Shipping
Reviews

Description

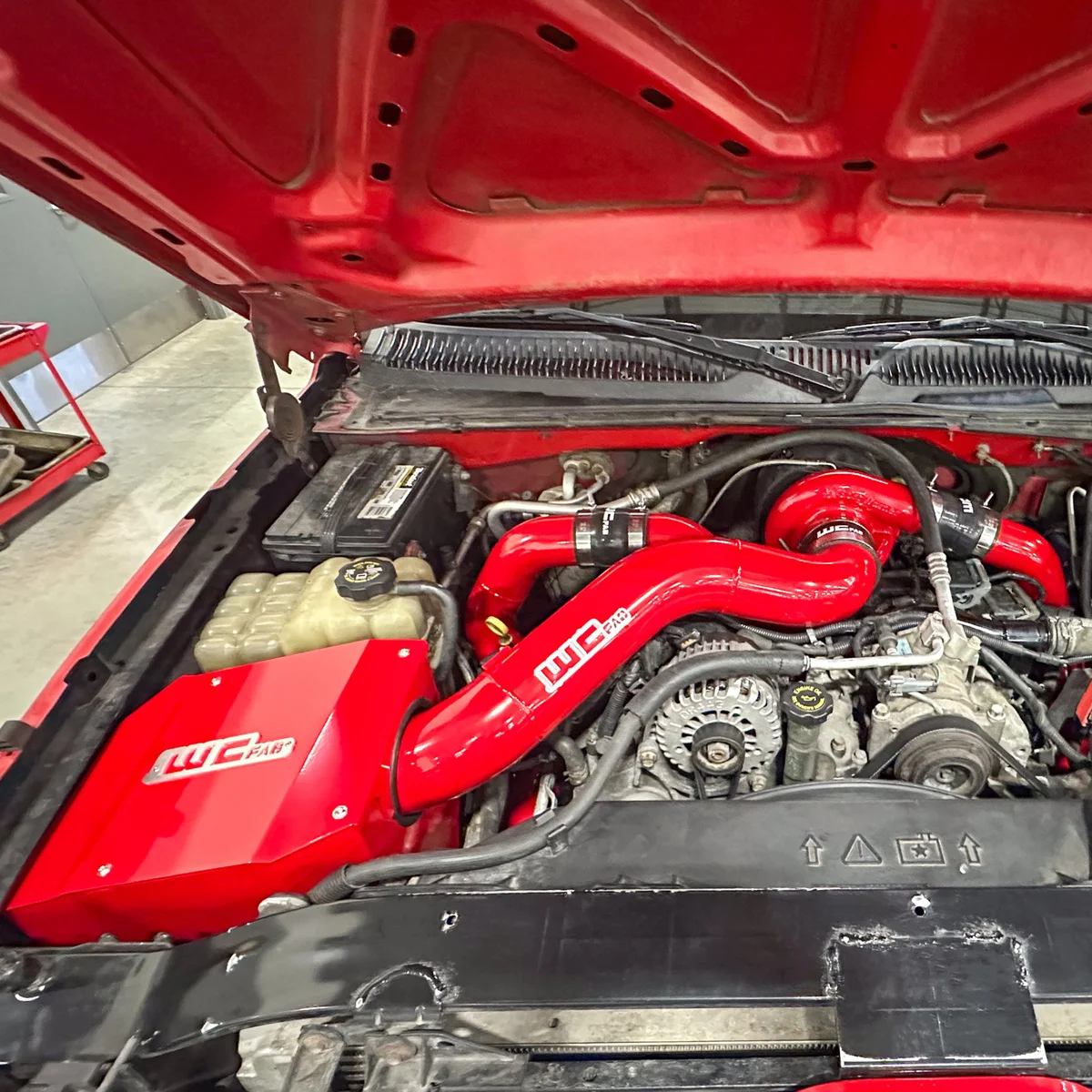

This kit will allow you to install an S400-based Turbo on your LB7 Duramax. Replacing all OEM plumbing and y-bridge with high flow 3" diameter piping. Oil Lines are high-quality stainless steel braided Parker Lines with the oil feed line routing from the main oil galley on the side of the engine block. We designed our down pipe to connect with your exhaust system V-Band and clamp, which simplifies installation and does not require you to cut your exhaust system.
If you are not purchasing the turbo from us, you must specify the brand you are using. Some Turbo's you may be required to ship to use for mock-up to build the kit.

Includes Driver Side Transmission Dipstick Tube, making installing the down pipe easier.

NOTE: Turbo Downpipe is designed for Half Marmon style S400 exhaust outlet, which measures 4.6" Diameter flat flange. NOT compatible with HX40 style exhaust outlet flanges.

Race cover style or SXE turbochargers will require a forward-facing VAN style thermostat housing and hose, sold separately.

The OEM turbo coolant feed port on the upper radiator pipe from the thermostat housing will interfere with the larger WCFAB Turbo Intake in this Kit. You MUST use a WCFAB Billet forward-facing thermostat housing Kit WCF100405 or our Modified OEM Pipe WCF100797. Billet Coolant Port Block Off Plugs DO NOT allow enough room for clearance on LB7 Models.
