HSP Diesel 2006-2007 LBZ Duramax Deluxe Max Air Flow Bundle - 384-HSP

HSP 2006-2007 Chevrolet / GMC Deluxe Max Air Flow Bundle

Part Number: 384-HSP

The 384-HSP is best known as the Deluxe Max Air Flow Bundle for the 2006 and 2007 LBZ Duramax-equipped Chevrolet and GMC trucks. This bundle includes everything you need to maximize the performance of your LBZ using HSP Diesels top-tier components.

What Is the Deluxe Max Air Flow Bundle for the LBZ Duramax?

This bundle features every major performance part HSP Diesel offers for the 2006-2007 LBZ Duramax platform. Designed to optimize airflow, reduce restrictions, and clean up the engine bay, this kit is ideal for those who want a full system upgrade in one shot — and at a bundle price.

Billet Thermostat Housing Kit

The factory cooling setup is bulky and limiting. Our Billet Thermostat Housing eliminates the coolant hose that crosses the driver-side valve cover, improving clearance for future upgrades. It features CNC-machined billet aluminum construction for both looks and performance.

Max Flow Bridge & Cold Side Tube

The cold side tube is a 3" mandrel-bent pipe designed for optimal flow. The Max Flow Bridge uses a two-piece configuration that eases installation and minimizes boost leaks. Each unit is tested to over 100 PSI for strength and reliability.

2" Replacement Up-Pipes

Factory up-pipes are prone to failure due to warped flanges and cracked bellows. HSPs 2" up-pipes use heavy-wall 304 stainless steel and sleeved bellows for durability and optimal exhaust flow.

Hot Side Intercooler Tube

This upgraded 3" mandrel-bent pipe features a straight-style lower intercooler connection to eliminate the stock failure-prone boot, providing better airflow and increased reliability.

VGT Intake Mouthpiece

The HSP VGT Intake Mouthpiece improves airflow and aesthetics. Handmade for precision, it allows rerouting of the factory PCV system and removal of the resonator box. Features an O-ring seal to prevent boost leaks (PCV re-route sold separately: 003-1-HSP).

Cold Air Intake

Using a 4.5" mandrel-bent intake tube and our heatshield box, this intake brings in cooler, denser air for more power. On average, dyno results show a gain of 20 horsepower and 58 lb-ft of torque.

Factory Replacement Coolant Tank

The OEM coolant tank is known for cracking and discoloration. HSPs hand-welded aluminum tank resists wear, improves durability, and looks great under the hood with powder coat options.

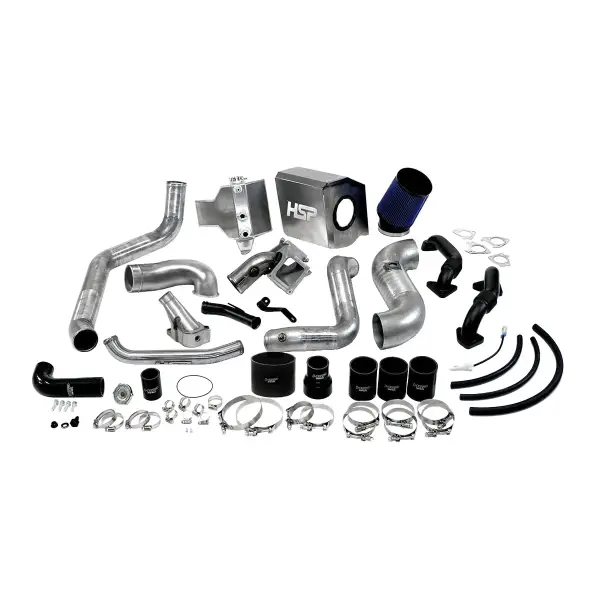

Whats Included:

• 1x Hotside Tube (HSP-IN-207)
• 1x Bridge Section (HSP-IN-220)
• 1x Bridge Neck (HSP-IN-743-2)
• 1x Coldside Behind Alt (HSP-IN-202)
• 1x 4.5" Cold Air Intake Tube (HSP-IN-150-1)
• 1x 4.5" Hole Heatshield Box (HSP-IN-748)
• 1x Heatshield Box Lid (HSP-IN-746)
• 1x Fabricated Turbo Inlet (HSP-IN-216-1)
• 1x Replacement Coolant Tank (HSP-IN-709)
• 1x Billet Thermostat Housing Upper (HSP-IN-716)
• 1x Billet Thermostat Housing Lower (HSP-IN-715)
• 1x Radiator Hose Tube w/ Logo (HSP-IN-229)
• 1x Upper Fan Shroud Bracket (HSP-IN-714)
• 1x Oil Fill Neck Tube (HSP-IN-717)
• 1x 2" Stock Replacement Up Pipe - Driver- Ceramic Coated (HSP-IN-281-C)
• 1x 2" Stock Replacement Up Pipe - Passenger - Ceramic Coated (HSP-IN-280-C)
• 1x 4.5" Filter (RFB-413-RFAB)
• 1x Bridge Neck O-Ring (RFB-670-RFAB)
• 1x 1/8" NPT Brass Plug (RFB-811-RFAB)
• 2x Bridge Neck Stud (RFB-902-RFAB)
• 2x Bridge Neck 12-Point Nut (RFB-903-RFAB)
• 4x 1/8" Aluminum Rivet (RFB-098-RFAB)
• 3x 10-32 x 3/8" Button Head Screws (RFB-099-RFAB)
• 16x Trim Lock (RFB-411-RFAB)
• 1x Heatshield Box Lid Backer Plate (RFB-746-BP-RFAB)
• 2x M4x.7x10mm Bolt (RFB-901-RFAB)
• 1x Radiator Cap (RFB-806-RFAB)
• 1x Thermostat Housing O-Ring (RFB-719-RFAB)
• 4x M8x1.25-25mm Socket Cap Bolt (RFB-909-RFAB)
• 4x M6x1.0-18mm Socket Cap Bolt (RFB-913-RFAB)
• 1x 4" T-Bolt Clamp (RFB-424-RFAB)
• 1x 4.5" T-Bolt Clamp (RFB-435-RFAB)
• 1x 4.5" - 4" Straight Boot (RFB-495-RFAB)
• 1x 2.25" T-Bolt Clamp (RFB-420-RFAB)
• 3x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 2.25" to 3" Reducer Boot (RFB-441-RFAB)
• 1x Up-pipe Gasket (Turbo Side) (RFB-821-RFAB)
• 1x Up-Pipe Gasket (Manifold Side) (RFB-822-RFAB)
• 24x 5/8" Heater Hose (RFB-401-RFAB)
• 2x 5/8" Worm Gear Clamp (RFB-403-RFAB)
• 4x 3" T-Bolt Clamp (RFB-422-RFAB)
• 2x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x Turbo Inlet O-Ring (RFB-628-RFAB)
• 18x 3/8" Heater Hose (RFB-395-RFAB)
• 2x 1/2" Worm Gear Clamp (RFB-405-RFAB)
• 4x 1 3/4" Worm Gear Clamp (RFB-408-RFAB)
• 1x 1.75" 90degree Boot - Rubber (RFB-433-RFAB)
• 1x 1.75"x3" Straight Boot - Rubber (RFB-437-RFAB)
• 1x Metric Bonded Seal 14mm (RFB-455-RFAB)
• 1x M14x1.5 to 3/8" Hose Barb (RFB-692-RFAB)
• 1x M14x1.5 Metric Port Plug (RFB-969-RFAB)
• 14x 1/2" Heater Hose (RFB-400-RFAB)
• 2x 1/2" Worm Gear Clamp (RFB-405-RFAB)
• 1x 1" Worm Gear Clamp (RFB-406-RFAB)
• 1x Low Coolant Sensor (RFB-459-RFAB)

Special Note:

HSP is making a running change in boot style — some boots may ship without logos to maintain supply consistency. Quality remains unchanged.

Fitment:

• LBZ: 2006-2007 (VIN Code 2 or D)

Note: VIN engine code is found in the 8th character; the 10th indicates the model year.

Overview:

• Increased performance
• High-flowing cold air intake
• Everything you need in one kit
• 3" Diameter hot and cold side tubes
• Improved spool-up and airflow
• Powder coat options for clean aesthetics
• Addresses common failure points
• Excellent value with bundled pricing
