HSP Diesel 2013-2014 LML Duramax Deluxe Max Air Flow Bundle - 584-2-HSP

HSP 2013-2014 Chevrolet / GMC Deluxe Max Air Flow Bundle

Part Number: 584-2-HSP

The 584-2-HSP is best known as the Deluxe Max Air Flow Bundle for the 2013-2014 LML Duramax-equipped Chevrolet and GMC trucks. This bundle includes everything HSP Diesel offers to enhance and maximize performance on your LML.

What Is the Deluxe Max Air Flow Bundle for the LML?

This kit is ideal for anyone looking to complete their airflow and cooling system upgrades in one go. Whether you plan to keep your factory turbo and injection or use drop-in upgrades, this bundle is built to optimize factory systems and support future performance mods.

Cold Air Intake

The intake system features a 4.5" mandrel-bent tube paired with a high-flow filter and an open heat-shield box. Designed to block hot engine air while maximizing airflow, it delivers dyno-tested gains of 20 horsepower and 58 lb-ft of torque.

Hot Side Intercooler Tube

Factory pipes often leak at the lower intercooler boot. HSP fixes this with a straight connection and a 3" mandrel-bent design, reducing turbulence and increasing flow by up to 40%.

Max Flow Bridge and Cold Side Tube

HSPs two-piece Max Flow Bridge installs easily and uses an O-ring seal for superior boost control. The paired 3" mandrel-bent cold side tube improves reliability and increases airflow through the system.

Upper Coolant Tube

A durable metal replacement for the stock rubber tube. Improves reliability and enhances engine bay aesthetics with your choice of powder coat finish.

2" Replacement Up-Pipes

Constructed from heavy wall 304 stainless steel with sleeved bellows. Improves exhaust flow, reduces EGTs, and supports better turbo spool-up.

VGT Intake Mouthpiece

This hand-assembled component provides a better seal via O-ring design, eliminating unfiltered air entry and potential boost leaks. It ensures your turbo receives the airflow gains from the intake system.

Factory Replacement Coolant Tank

Replaces the OEM plastic tank prone to discoloration and cracking. Made from CNC-cut and bent aluminum, hand-assembled, and includes all factory provisions including the low coolant sensor.

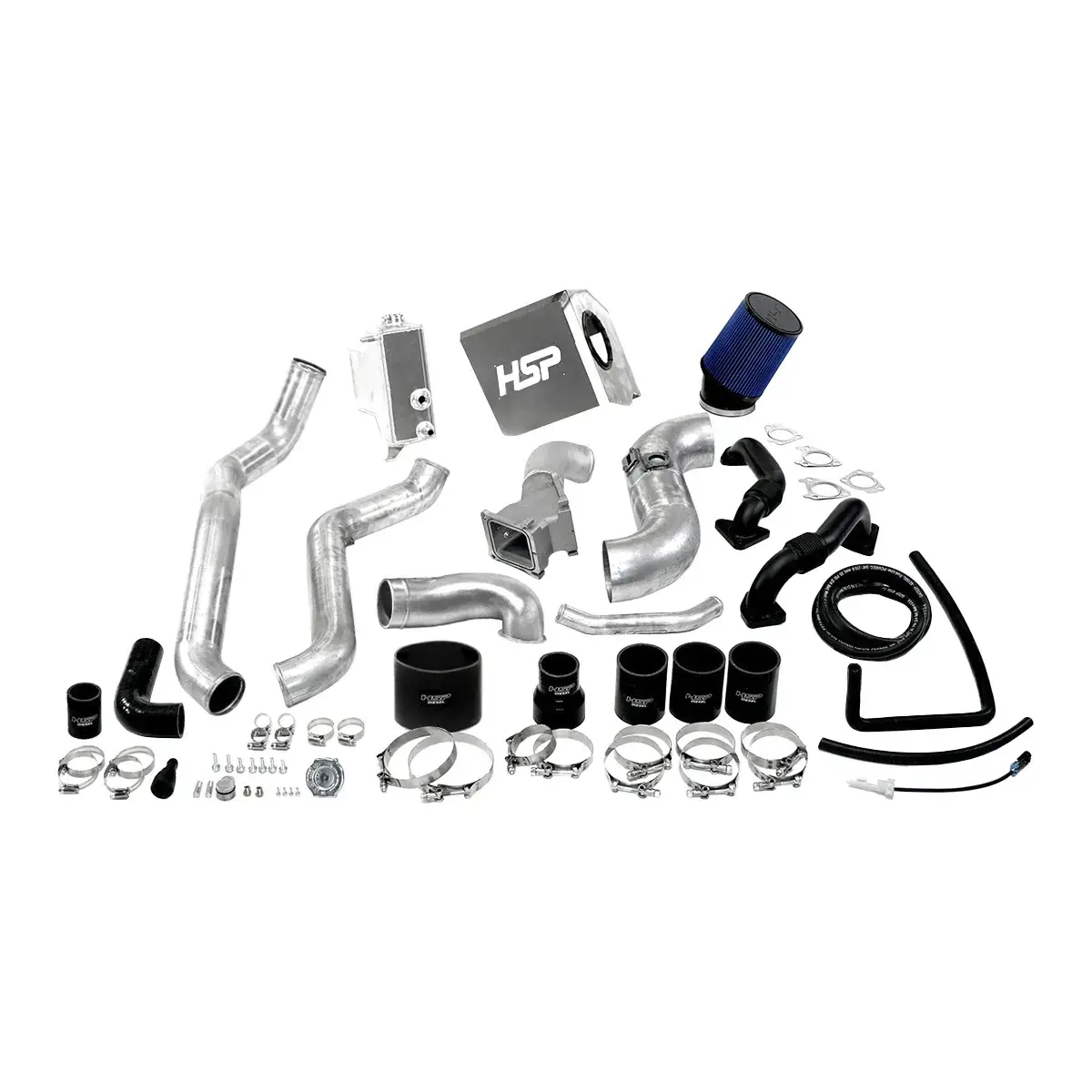

Whats Included:

• 1x Hotside Tube (HSP-IN-218)
• 1x Bridge (HSP-IN-223)
• 1x Coldside (HSP-IN-228)
• 1x Fabricated Turbo Inlet (HSP-IN-216-2)
• 1x 4.5" Cold Air Intake Tube (HSP-IN-150-16)
• 1x 4.5" Hole Heatshield Box (HSP-IN-749)
• 1x Heatshield Box Lid (HSP-IN-746)
• 1x Factory Replacement Tank (HSP-IN-708-14)
• 1x Radiator Hose Tube w/Logo (HSP-IN-239-1)
• 1x 2" Stock Replacement Up Pipe - Driver- Ceramic Coated (HSP-IN-281-C)
• 1x 2" Stock Replacement Up Pipe - Passenger - Ceramic Coated (HSP-IN-280-C)
• 1x 4.5" Filter (RFB-413-RFAB)
• 1x 1/8" NPT Brass Plug (RFB-811-RFAB)
• 1x M6x1.0x16mm Flange Bolt (RFB-893-RFAB)
• 4x 1/8" Aluminum Rivet (RFB-098-RFAB)
• 3x 10-32 x 3/8" Button Head Screws (RFB-099-RFAB)
• 16x Trim Lock (RFB-411-RFAB)
• 1x Heatshield Box Lid Backer Plate (RFB-746-BP-RFAB)
• 4x M4x.7x10mm Bolt (RFB-901-RFAB)
• 1x Radiator Cap (RFB-806-RFAB)
• 1x 4" T-Bolt Clamp (RFB-424-RFAB)
• 1x 4.5" T-Bolt Clamp (RFB-435-RFAB)
• 1x 4.5" - 4" Straight Boot (RFB-495-RFAB)
• 1x 2.25" T-Bolt Clamp (RFB-420-RFAB)
• 3x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 2.25" to 3" Reducer Boot (RFB-441-RFAB)
• 1x Up-pipe Gasket (Turbo Side)(RFB-821-RFAB)
• 1x Up-Pipe Gasket (Manifold Side)(RFB-822-RFAB)
• 1x Duramax Pre-Made Hose - Rubber (RFB-398-RFAB)
• 1x 5/8" Worm Gear Clamp (RFB-403-RFAB)
• 1x 1/2" Worm Gear Clamp (RFB-405-RFAB)
• 60x 5/8" PCV Hose (RFB-407-RFAB)
• 4x 3" T-Bolt Clamp (RFB-422-RFAB)
• 2x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 3/4" to 5/8" Heater Hose Connector (RFB-462-RFAB)
• 1x 3/8" Coolant Plug - Aluminum (RFB-808-RFAB)
• 1x LML Rear Cover Coolant Fitting (RFB-809-RFAB)
• 1x LML Coolant Plug O-Ring (RFB-813-RFAB)
• 2x M6x1.0x25mm Flange Bolt (RFB-896-RFAB)
• 4x M6x1.0x20mm Flange Bolt (RFB-897-RFAB)
• 14x 1/2" Heater Hose (RFB-400-RFAB)
• 3x 1/2" Worm Gear Clamp (RFB-405-RFAB)
• 1x 1" Worm Gear Clamp (RFB-406-RFAB)
• 1x Low Coolant Sensor (RFB-460-RFAB)
• 1x 3/8" Coolant Plug - Aluminum (RFB-808-RFAB)
• 4x 1 3/4" Worm Gear Clamp (RFB-408-RFAB)
• 1x 1.75" 90° Boot - Rubber (RFB-433-RFAB)
• 1x 1.75"x3" Straight Boot - Rubber (RFB-437-RFAB)

Special Note:

HSP Diesel is currently updating boot styles. Some boots may arrive without logos. This change ensures continued availability and the same high-quality performance you've come to expect from HSP.

Vehicle Fitment:

• LML: 2013-2014 (8th digit of VIN = 8)

How to Verify: The 8th character of your VIN is the engine code, and the 10th character indicates the model year.

Note: This kit fits only 2013-2014 models due to engine bay layout differences despite the shared VIN code. Please confirm the model year before purchase.

Overview:

• Increased performance and throttle response
• Maximizes factory turbo and injector potential
• High-flow Cold Air Intake
• 3" Mandrel-Bent Hot and Cold Side Tubes
• Durable 5-layer Silicone Boots
• Powder coat options available
• Replaces multiple failure-prone factory components
